3D MultiArm 3000

Automated 3D Product Photography for Large Products

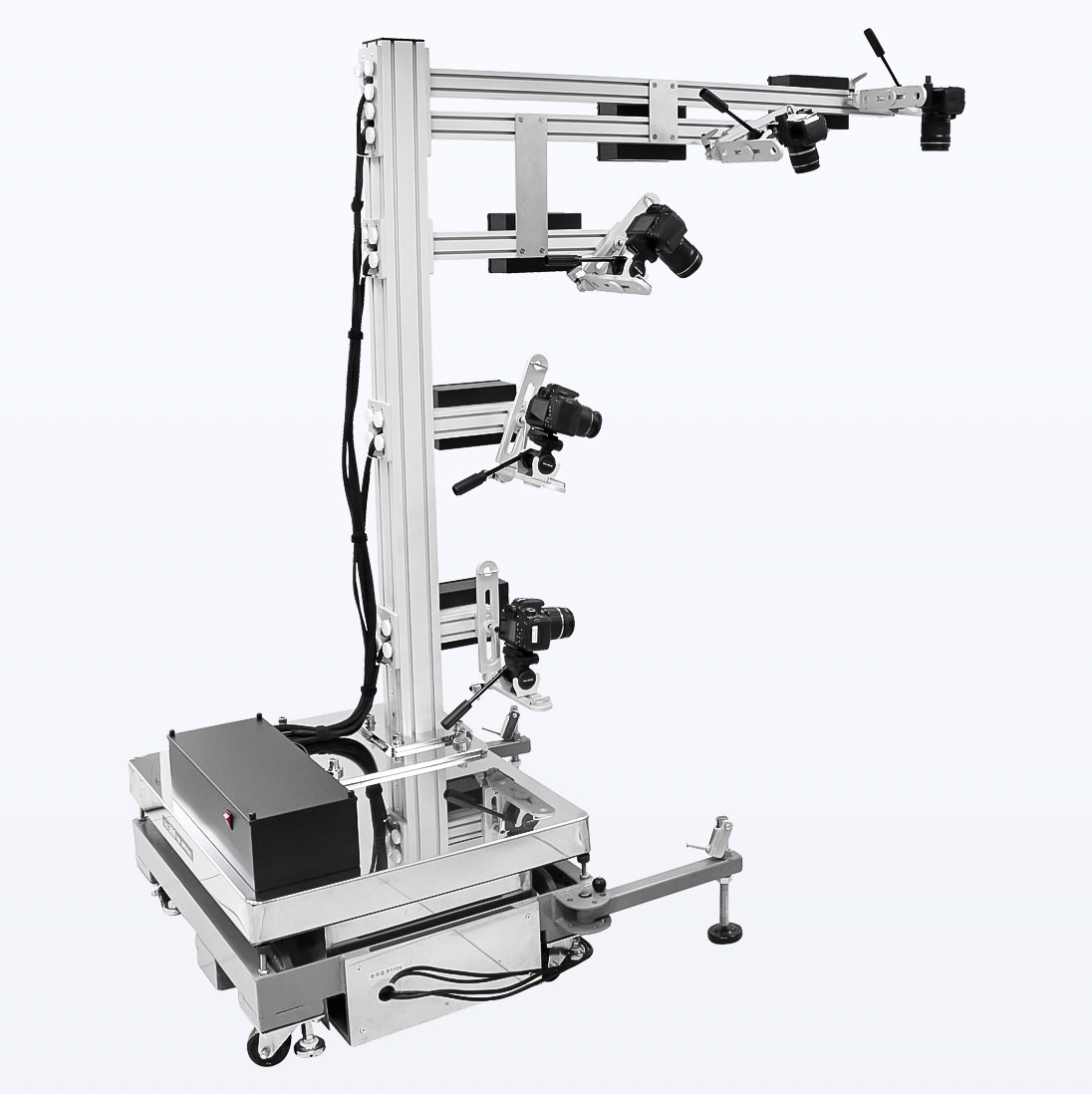

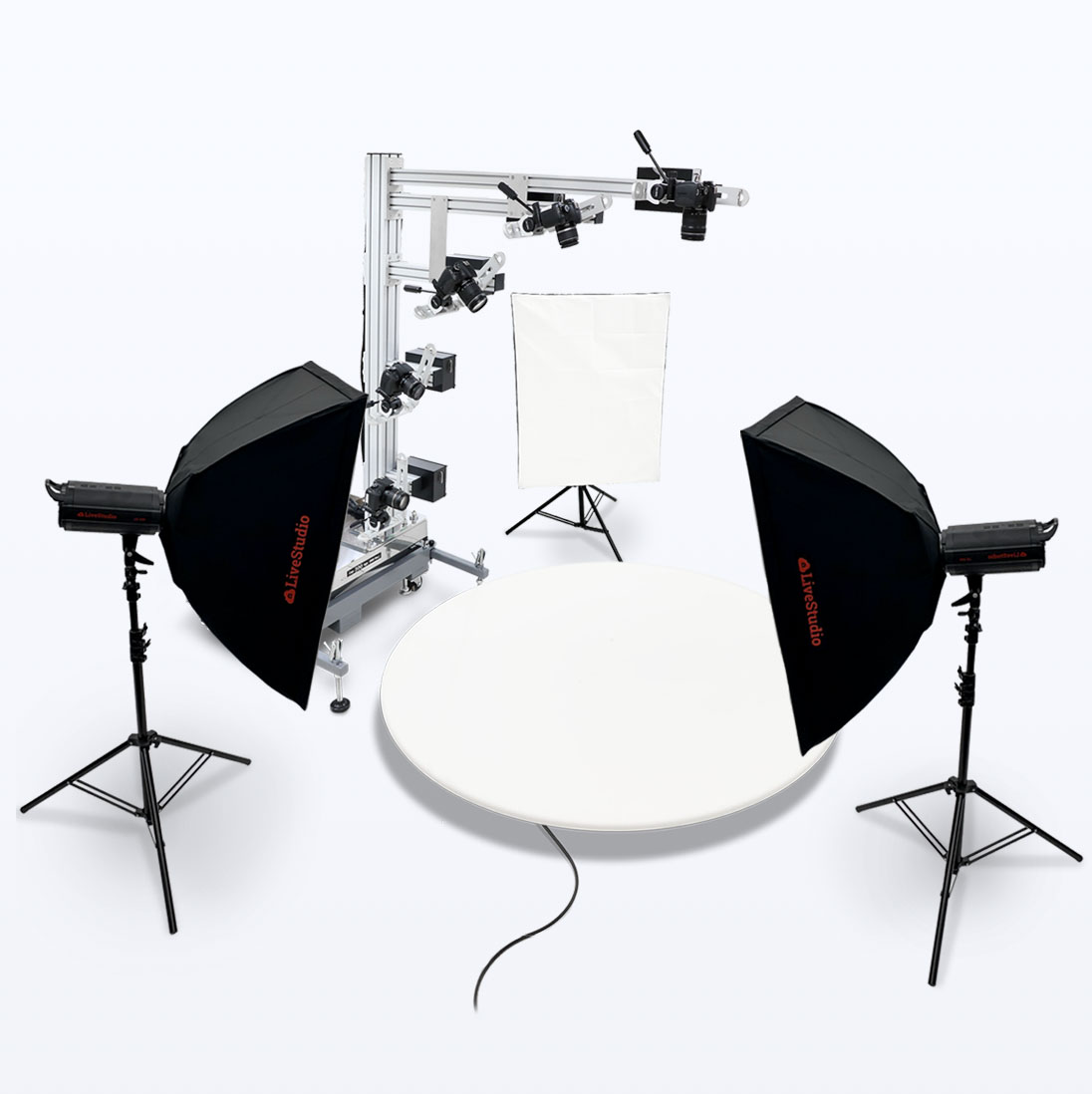

The Ortery 3D MultiArm 3000 automates the creation of hemispherical and spherical data sets and interactive product views for objects up to 48 x 48 x 48". The system synchronizes up to five Canon cameras with an Ortery 360 turntable to automate image capture, processing, editing, stitching, and saving. Once calibrated, cameras remain positioned and ready - simply place product, adjust height, select your settings, and start shooting.

Dimensions Hoist Up: 82.7 x 32.3 x 91.7"
(210.1 x 82 x 232.9 cm)
Hoist Down: 82.7 x 32.3 x 72.4"
(210.1 x 82 x 183.9 cm)

Weight 529 lbs (240 kgs)

Shooting Radius 47.25" (120 cm)

Max Object Size 48 x 48 x 48"
(121.9 x 121.9 x 121.9 cm)

Benefits

Create 3D content faster — Capture multiple image rows simultaneously and create a hemispherical product view in a single turntable rotation

Automate the entire workflow — Software coordinates cameras, turntable movement, image capture, processing, editing, stitching, and saving

Eliminate repetitive camera setup — Once calibrated, cameras remain positioned for shooting products of different heights without continual readjustment

Produce consistent, repeatable results — Save and reuse best capture, editing, stitching, and output settings

Create multiple types of visual content — Produce still photos, image sequences, interactive 360 and 3D views, videos, and 3D modeling data sets

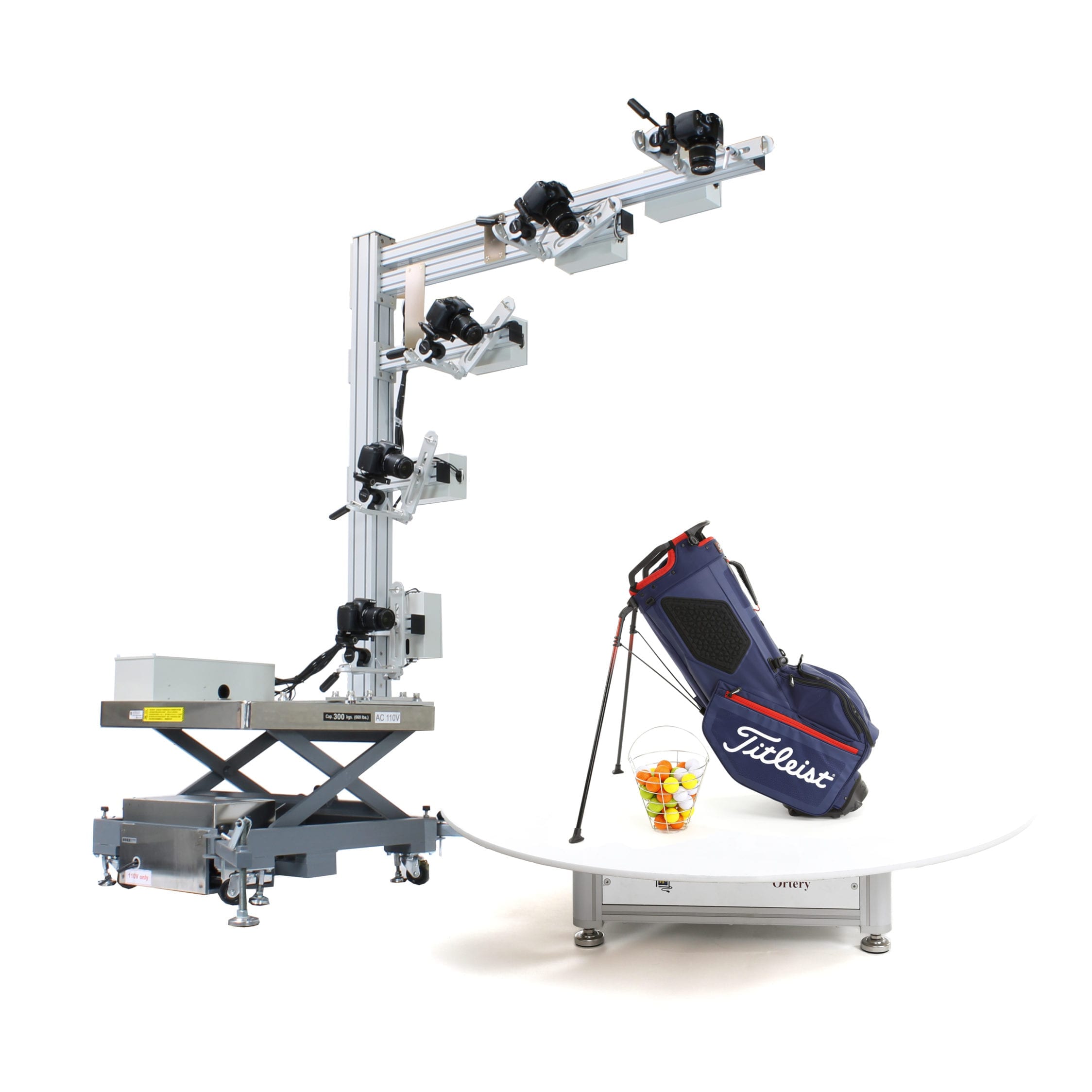

Photograph large products from multiple angles — A 47.25″ shooting radius and hydraulic hoist accommodate products up to 48 x 48 x 48″

Scale production with batch processing — Batch edit, stitch, and save large image sets to reduce hands-on production time

Easy to operate — Automated workflows reduce the photography expertise required to create professional, repeatable results

Integrate Results – Use Ortery tools and APIs (optional) to automatically deliver content directly to Shopify, your existing databases and other applications.

Applications

eCommerce: Create interactive 3D product views that let online shoppers rotate, explore, and zoom into products from multiple angles.

Product Marketing: Produce still images, 360 views, 3D animations, GIFs, and videos from the same photography setup. Capture once, then use the results across your organization

Quality Control & Documentation: Capture detailed, repeatable multi-angle image sets for inspection, condition reporting, documentation, and archival purposes

3D Pipeline Content Creation: Automatically capture structured image sets from multiple elevations and angles for use in 3D modeling, AI training, visual quality control and other 3D applications

Interactive Product Experiences: Create 3D product views in HTML format with deep zoom, hotspots, hyperlinks, customized rotation behavior, and other interactive features.

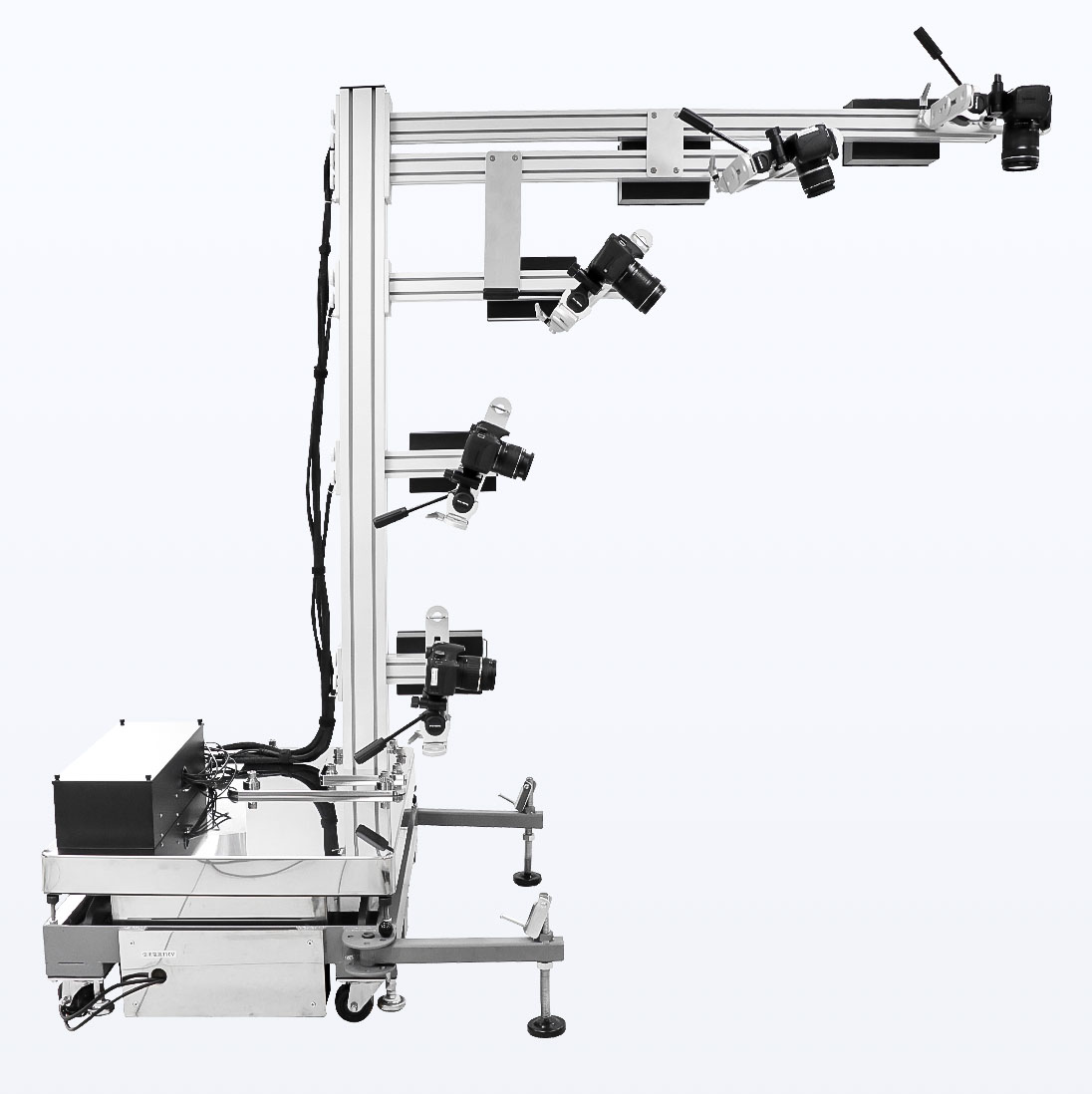

Hardware

  • Supports products up to 48 x 48 x 48″ with 47.25″ shooting radius
  • Supports up to five Canon cameras
  • Cameras can capture simultaneously
  • Creates a hemispherical image sequence in one turntable rotation

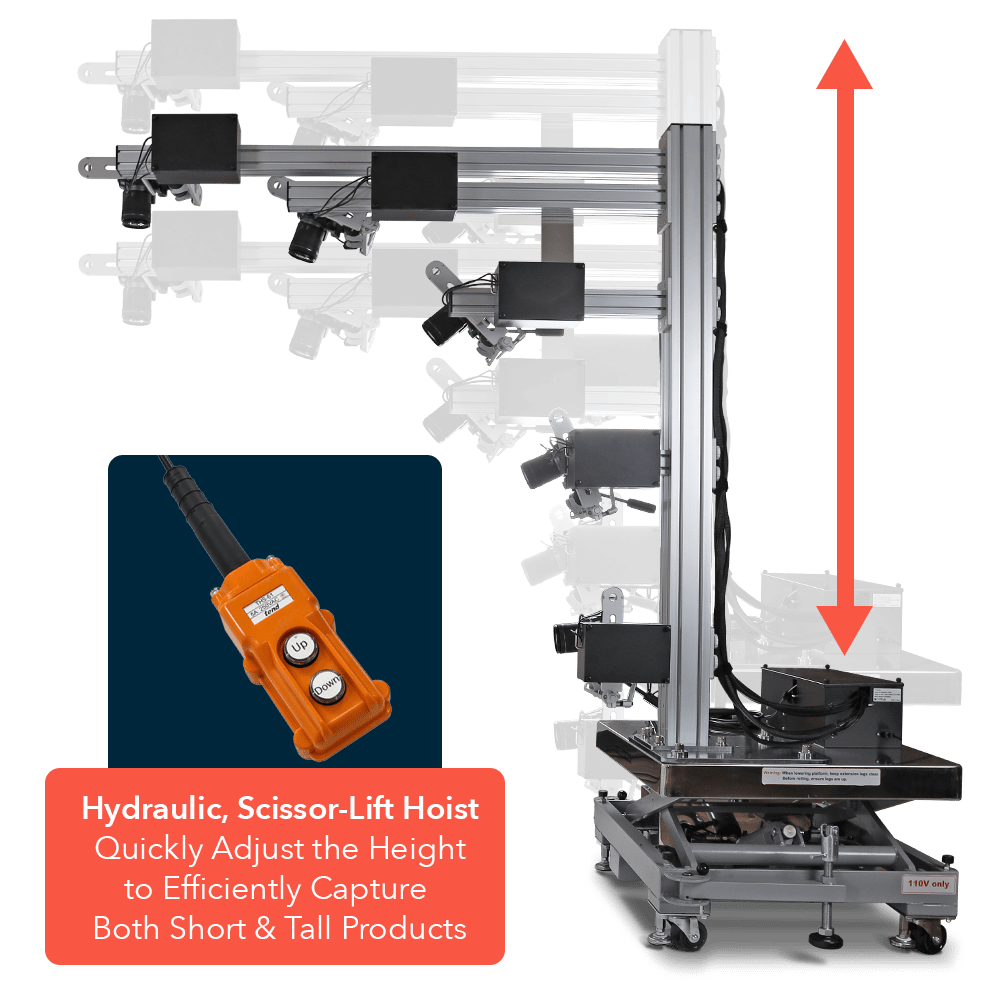

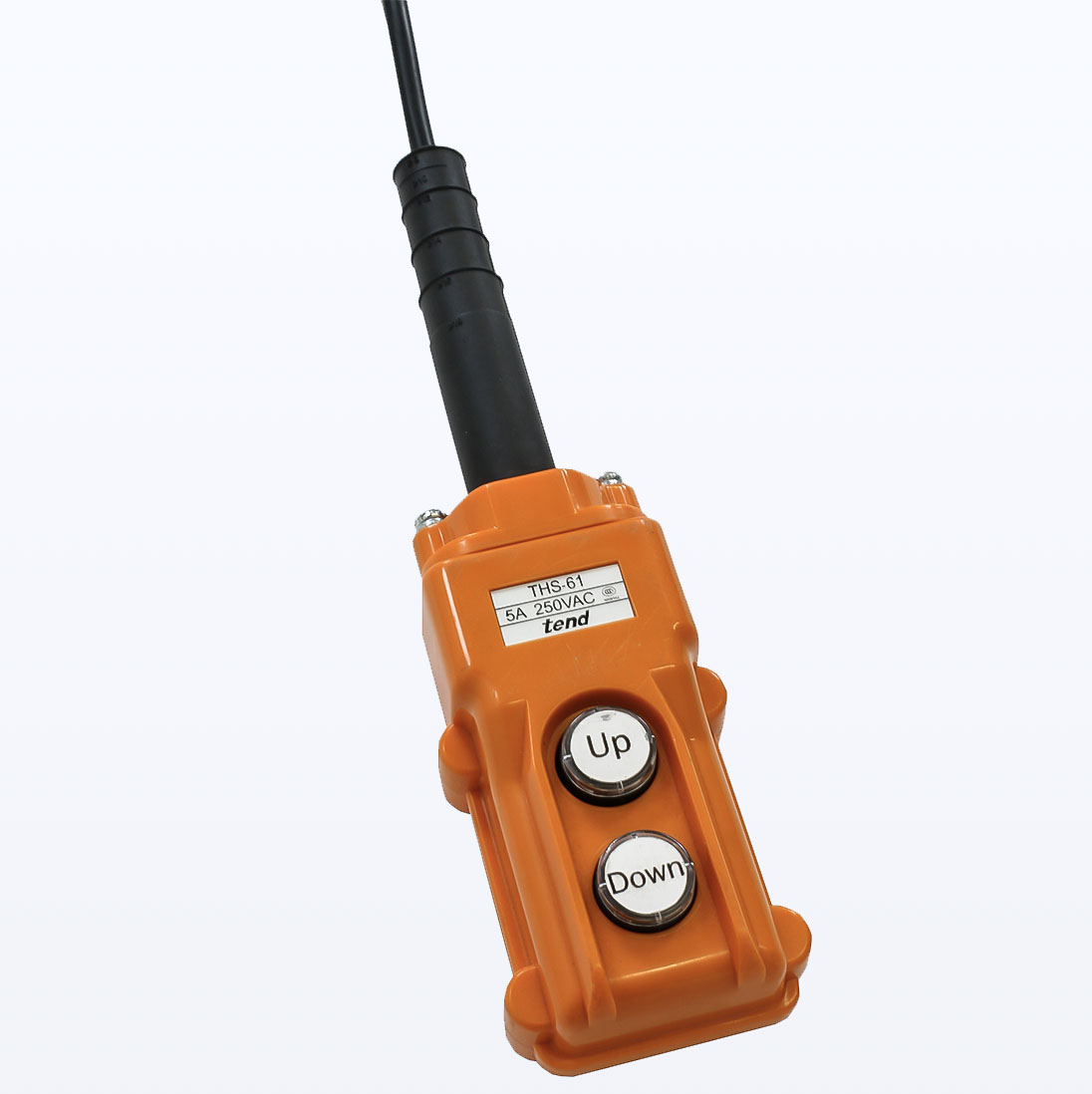

  • Hydraulic hoist raises and lowers the camera array for hemispherical and spherical capture
  • Maintains cameras equidistant from product center for natural-looking 3D results

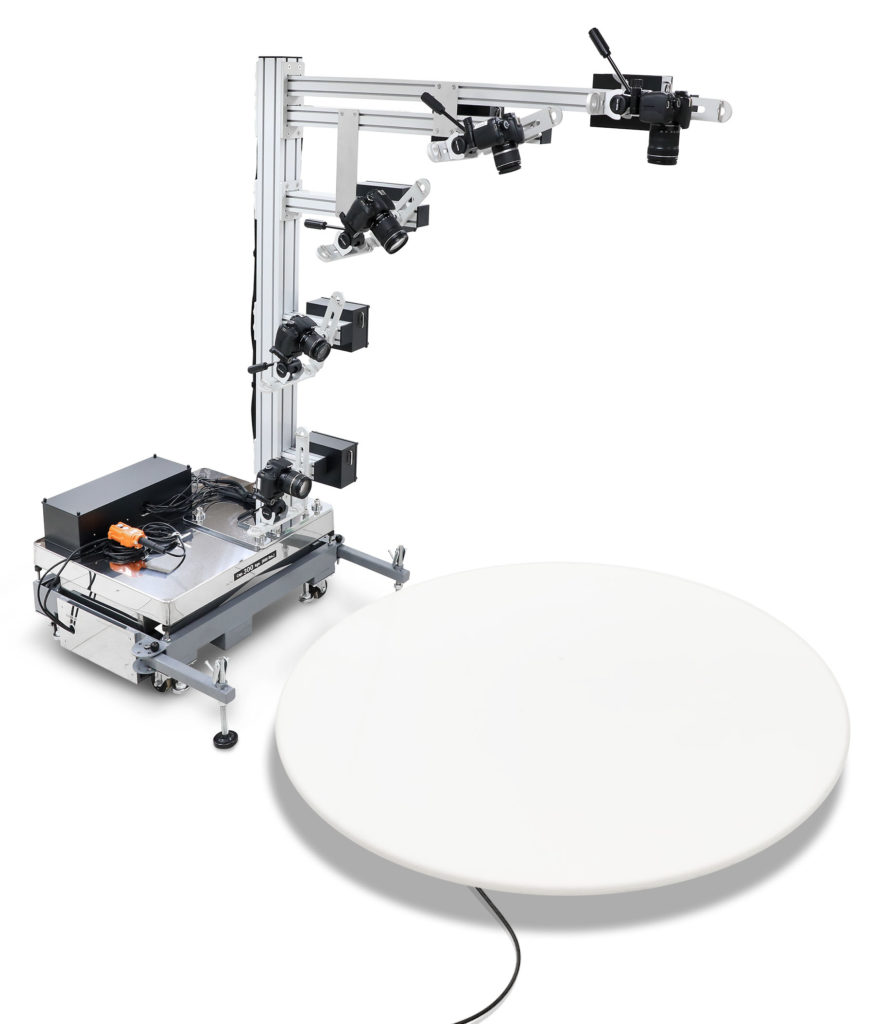

  • Works with Ortery PhotoCapture 360, Infinity, and PhotoBench turntables
  • Individual arm control boxes provide power, USB, and shutter-release connectivity
  • Tripod heads support tilt, landscape, and portrait camera positioning
  • Casters and legs provide mobility, leveling, and stability
  • Easy assembly, no tools required
  • Heavy-duty construction designed for studio and warehouse production environments

Software

  • Automates multi-camera image capture and turntable movement
  • Simultaneously controls up to five compatible Canon cameras
  • Automates image capture, processing, editing, stitching, saving, and Ortery Cloud transfer
  • Creates still photos, image sequences, 360 views, 3D views, GIFs, and videos
  • Automatically captures up to 1024 images per animation in as many as 10 rows
  • Saves and reuses best capture and output settings as production profiles
  • Automates 3D stitching for hemi & spherical product views in HTML format
  • 360 and 3D animations support customizable interactive viewing with deep zoom, hotspots, hyperlinks, and more
  • Define your own custom image capture sequences – any camera, any turntable angle
  • HTML viewer supports customizable interactive viewing with deep zoom, hotspots, hyperlinks, and more
  • HTML output plays in standard web browsers and can be viewed online, locally, or across a network
  • Simultaneously export captured results in multiple formats – JPG, PNG, RAW, WebP, TIFF, TIFF Alpha, PSD, AVIF, HTML5, GIF, MOV, MP4 (H264, H265 & AV1)
  • When paired with a PhotoCapture 360 turntable:  Works with any lighting setup, but Ortery LiveStudio lighting offers several advantages
  • When paired with an all-in-one, bottom-lit 3D PhotoBench or Infinity system, the software supports image capture on pure-white and transparent-backgrounds
  • AI Background Removal is optional. Plans start at $12/month

Integrations

Ortery offers several tools and APIs to enhance content creation and directly connect the results to your downstream applications, resulting in increased savings and efficiency.

Ortery Connect

Existing Database Integration
Integrate Ortery with virtually any database, DAM, PIM, ERP, or custom application to automate workflows and improve operational efficiency. LEARN MORE

AI Background Removal

Remove Backgrounds During Capture
Automatically remove backgrounds as you capture to create clean, professional images without additional post-processing. LEARN MORE

Ortery Direct to Shopify

Push Captured Content Directly to Listing
Capture images and automatically link them to the correct Shopify product listings, eliminating manual uploads and reducing human error. LEARN MORE

Ortery Cloud

Integrated Hosting
Capture and instantly save images to Ortery Cloud for secure hosting, sharing, and remote access. LEARN MORE

Shopify Plug-In

Embed Interactive 360 / 3D Animations In Listings
Ortery Integration Tools for Shopify ensure interactive 360 / 3D animations are viewable in your listings, regardless of the template in use LEARN MORE

Combinations

PhotoCapture 360 Series

PhotoCapture 360 Series

Software-controlled turntables automate product photography to create interactive 360° and 3D views of everything from small products to furniture.
Learn More
Infinity Series

Infinity Series

Software-controlled photography systems with bottom-lit turntables automate the capture of still product images and interactive 360° and 3D views on a white background.
Learn More
3D PhotoBench 280

3D PhotoBench 280

Capture professional stills, 360° product views, and videos on pure white or transparent backgrounds. Features dimmable LED lighting and a transparent, bottom-lit turntable for seamless results. Automates capture, editing, and saving—ideal for eCommerce and high-volume photography.
VIEW PRODUCT
LiveStudio

LiveStudio

Breakaway from traditional lighting studios. LiveStudio offers dimmable LED lights controlled from Ortery’s photography software. Adjust and view camera and light changes in real time. Press Snap to take pictures and speed up product photography.
View Product
LiveZoom

LiveZoom

Control camera zoom directly from the software. Save and reuse zoom settings with camera, lighting, and turntable settings to simplify setup and create automated, repeatable capture workflows.
Learn More

Accessories

3D MultiArm Canopy for 3D PhotoBench 280

3D MultiArm Canopy for 3D PhotoBench 280 Optional

When using a 3D MultiArm 2000 / 3000 with a 3D PhotoBench 280, the canopy is used to block contaminate light from above. Not only does it reduce reflections, it also provides improved color accuracy.
3D PhotoBench 280 Top Light Rack for 3D MultiArm

3D PhotoBench 280 Top Light Rack for 3D MultiArm Optional

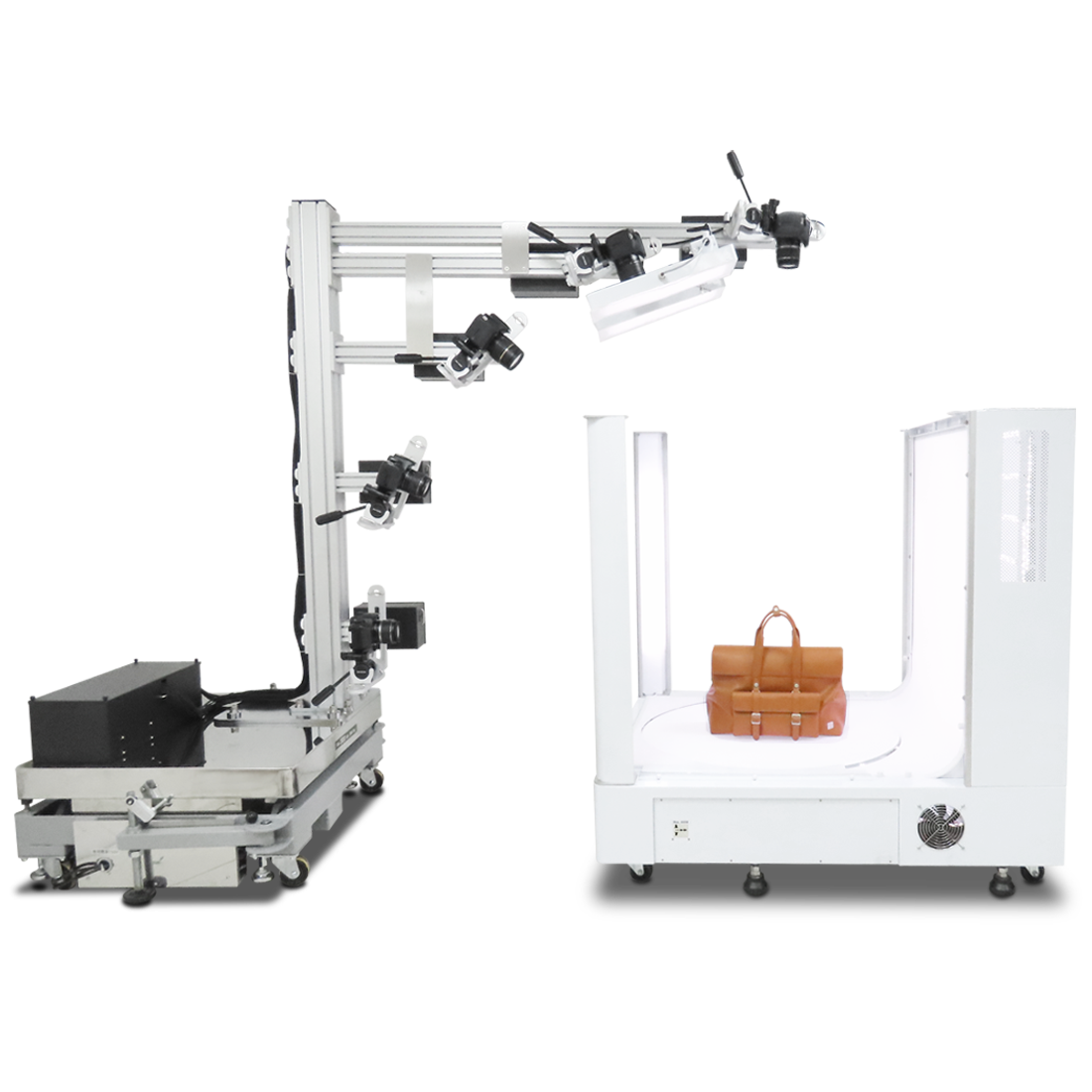

When using a 3D MultiArm with a 3D PhotoBench 280, it is highly recommended to mount the 280 top light onto the MultiArm to give sufficient top / front light to the products being photographed. The mount comes with longer connection cables.

Questions?

Find the right fit for your needs. Select the right size for your product with the features you require, we can help you take the types of pictures you need.
